Miris network prerequisites

This article details all prerequisites and network flow configurations required to deploy the Miris station within your infrastructure.

SUMMARY

1/ NUDGIS AND MIRIS MANAGER SERVICES

2/ NETWORK INFRASTRUCTURE

3/ VIDEO AND AUDIO SOURCES

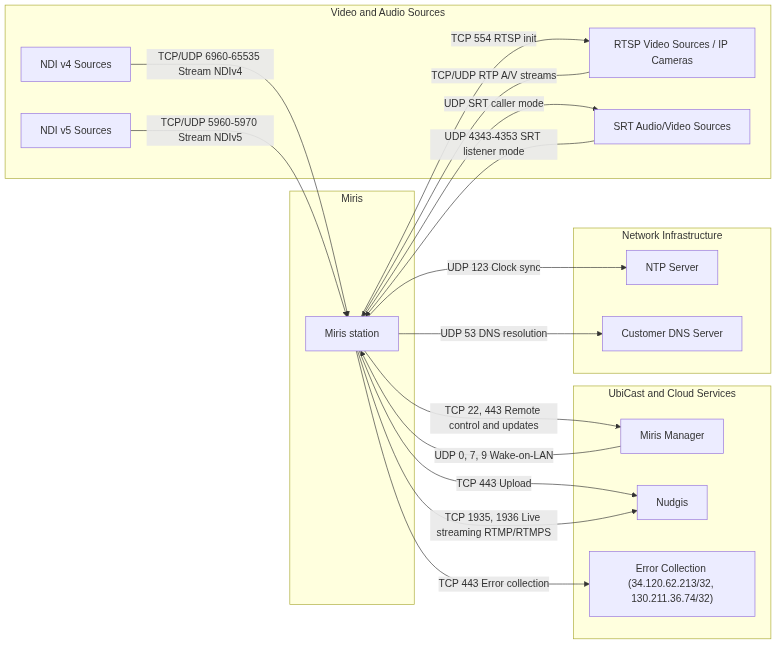

The diagram below summarizes all required network flows. The following chapters detail their technical specifications:

Nudgis and Miris Manager Services

These rules govern exchanges between the Miris box and management platforms, publishing platforms, or network devices.

• Miris Manager

  • Outbound: TCP 22, 443 Remote control and downloading system updates.
  • Inbound: UDP 0, 7, 9 Reception of the Wake-on-LAN (WoL) magic packet sent locally by Miris Manager to boot the box remotely.

  Nudgis

  • Outbound: TCP 443  Uploading recorded media to the publishing platform.
  • Outbound: TCP 1935, 1936  Live video streaming via RTMP and RTMPS protocols.

  Error Collection Server (34.120.62.213/32, 130.211.36.74/32)

  • Outbound: TCP 443 Automatic reporting of error logs and telemetry data.

Network Infrastructure

These rules cover core system services required for the proper functioning of the station.

• NTP Server

  • Outbound: UDP 123 Internal clock synchronization (essential for proper station operation).

  DNS Client Server

  • Outbound: UDP 53 Domain name resolution for local and cloud infrastructure.

Video and Audio Sources

These rules define the acquisition of incoming media streams according to the source protocol.

• RTSP Sources / IP Cameras

  • Outbound: TCP 554 RTSP control session initialization and negotiation by the box.
  • Inbound: TCP/UDP (dynamic port) Reception of raw video/audio streams transported via RTP.

  SRT Sources

  • Outbound (Caller Mode): UDP (configured port) Connection initiated by Miris to an external SRT source.
  • Inbound (Listener Mode): UDP 4343-4353 Reception of an SRT connection initiated by remote equipment to Miris.

  NDI v4 Sources

  • Inbound: TCP/UDP 6960-65535 Dynamic port range for receiving NDIv4 streams (NDI & NDI|HX).

  NDI v5 Sources

  • Inbound: TCP/UDP 5960-5970 Dedicated port range for receiving NDIv5 streams (NDI & NDI|HX).

For any further questions or if you have specific constraints related to your security policy, our support team remains at your disposal!
