Welcome to this article on recording with your Miris stations.

You have successfully connected to your recorder thanks to our article "Connect to your station" and you have reached the recording page! First of all, we are going to show you the recording interface, which will hold no more secrets for you by the end of this article.



TABLE OF CONTENT

1/ THE RECORDING INTERFACE

2/ HEADER

3/ MAIN CONTENT

4/ FOOTER



The recording interface

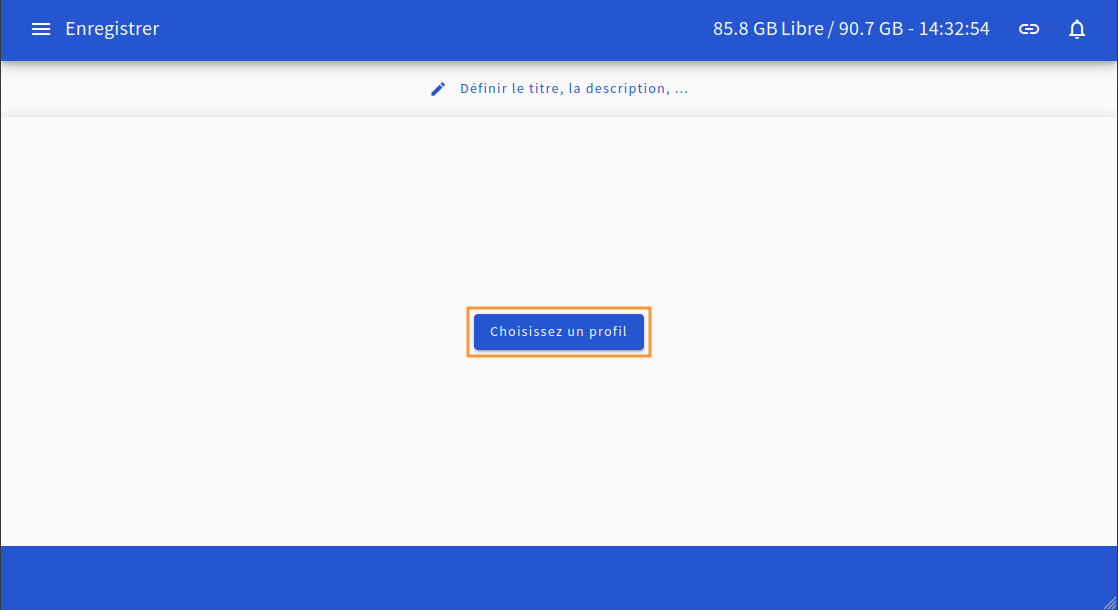

Before you can start recording, you need to have a recording profile set up. We recommend that you read our article on "Recording Profiles" to find out the ins and outs. When you get to the recording page, you will be asked to choose a profile, and you can configure as many as you like to suit your use cases. They can have different video and audio sources as well as distinct configurations. For example, for exporting your videos on demand (VOD) with your publication targets on the one hand and on the other hand your live broadcasts.

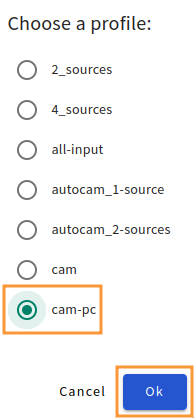

A popup window will open with a list of existing profiles.

Select one and click "Ok" to go to the recording page.

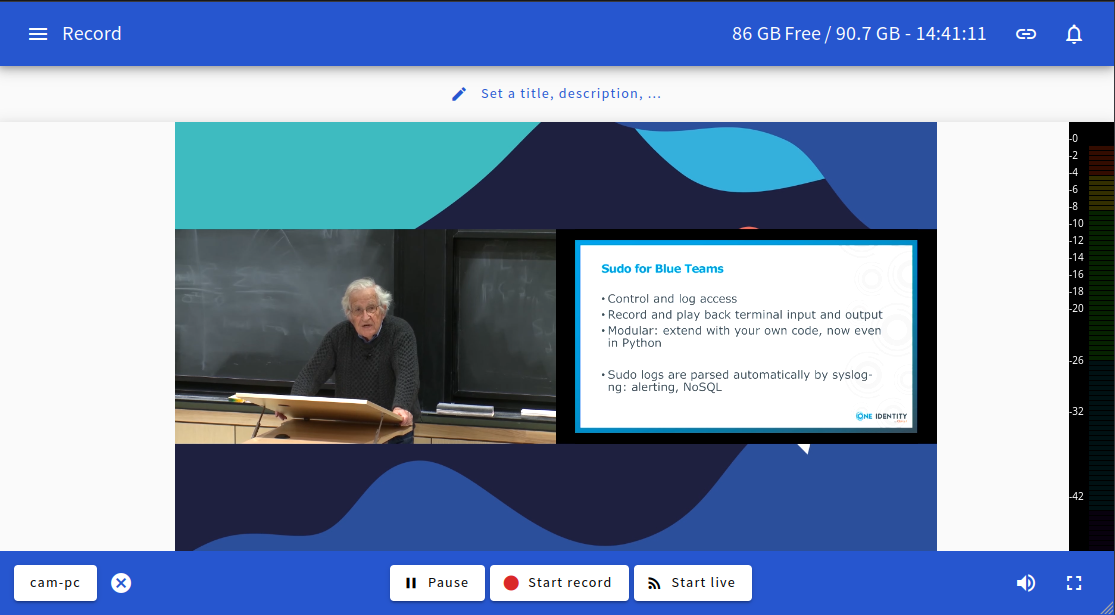

This page is structured like a traditional web page, with a header, main content, footer and sidebars.



Header

In the header, you will find five items.

The icons   will allow you to open the sidebars on the left for navigation and the other one on the far right for station notifications.

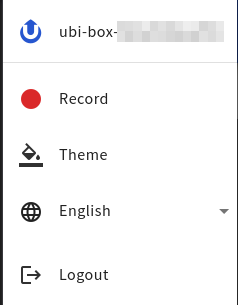

	The navigation sidebar allows you to change the display theme from dark to light, change the language to French or English and log out. By default, the user's period of inactivity, after which the logout pop-up window will be displayed to the user, is five minutes.

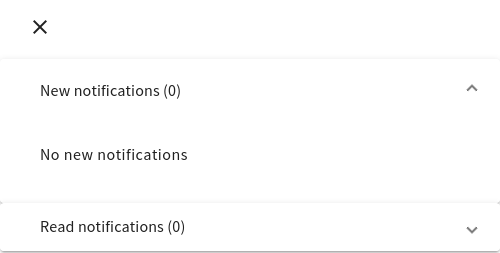

	You will find all the notifications sent for the station, sorted by read status: new notifications or read notifications.

Then you have the title of the page which tells you where you are, here in the Record section. After that, you will see the remaining disk space compared to the available storage, along with the current time. The last icon shows you the connection status to your Miris Manager. If you click on it, you'll get additional debugging information: which Miris Manager you are connected to, HTTP and SSH connection status.



Main content

In the main content, in the middle at the top, you will access metadata editing with the entry "Set title, description,…", in the center, the preview of the rendering of your recording and on the right, a VU meter for visual control of the sound volume. As the speaker of the video, you can define the metadata by clicking on the button, which will open a pop-up window where you can edit the title of the recording, a description, keywords separated by spaces, the name of the speaker and the name of the company.

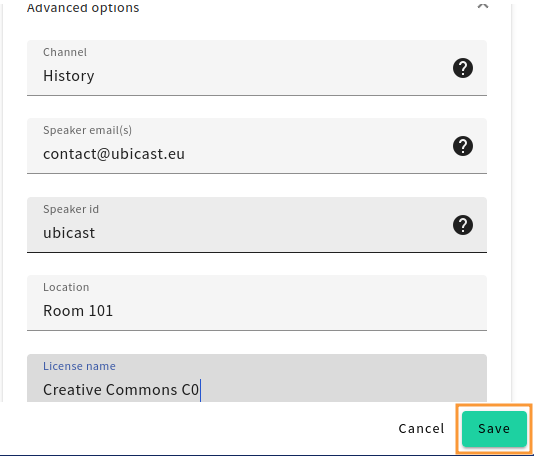

If you are the fleet administrator, you will have access to an additional menu, the advanced options, which will allow you to define the fields:

Channel	Channel title or you can also use the Nudgis syntax with the oid of the channel such as c1251427e17b7o2plfgw. If automatic publication is enabled, the field will contain the id of the string entered in your recording profile.
Email(s) of speaker(s)	The speaker's email address. If you have several speakers, you can enter several addresses, separated by the "|" character. For example, contact@ubicast.eu|contact-en@ubicast.eu. This feature is available from Miris version 2.6.0. This field is filled in automatically, if you use the link to the control page with dedicated authentication.
Speaker id	Identifier used in Nudgis. This field is filled in automatically if you use the link to the control page with dedicated authentication.
Location	Station location, default is the station name
Licence name	Video licence.
Licence UL	Link to the video licence
Creation date	The date on which the video was created is filled in automatically.
Transcode this media after sending	By default, this option is active. You can deactivate this feature to be able to view the content immediately after sending it to Nudgis.
Layout	Determines the type of player used in Nudgis Miris publish in Dynamic RichMedia by default, but you can always choose the older HD RichMedia or Classic RichMedia formats.
External reference	Free field

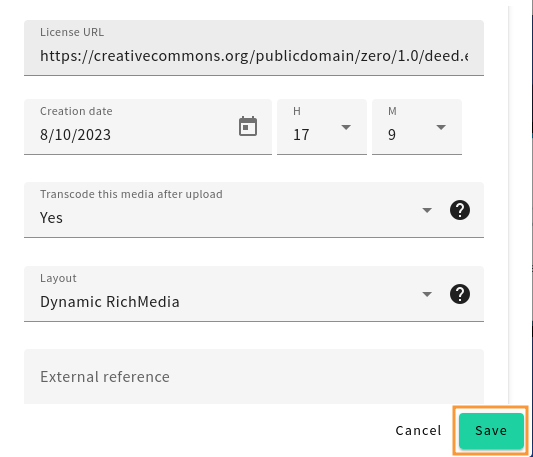

When you have finished editing your metadata, click on the “Save” button. These metadata will be used on your Nudgis server.



Footer

Finally, in the footer, you will find the recording control bar.

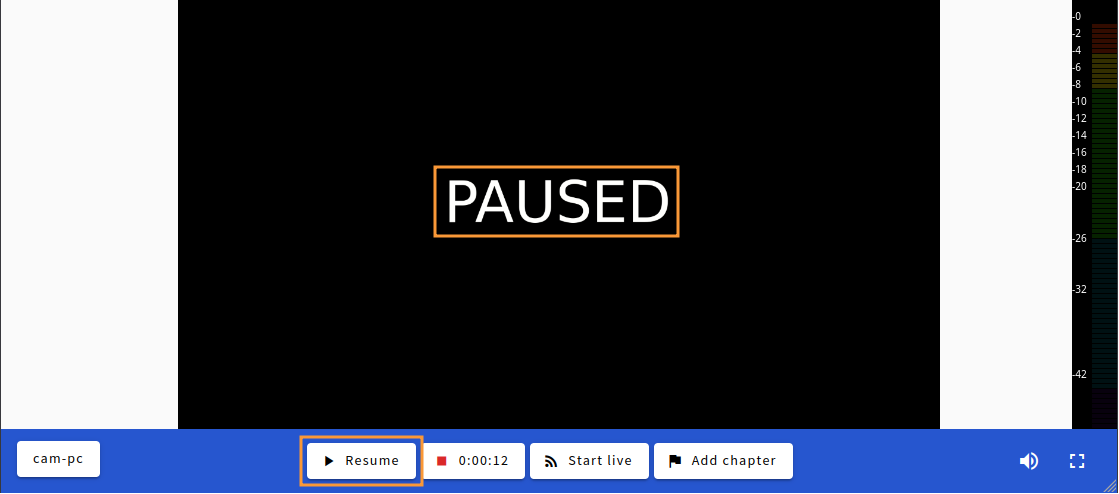

The first button indicates the profile currently in use and the button for selecting another profile. In this case, the 'cam-pc' profile is used. The following icon ⨯ stops the current preview and returns to the previous page, i.e. the profile selection page. Next, you will have the option of pausing the recording/live broadcast using the “Pause” button. If you press this button, the word Pause will appear on the screen and the audio will be muted. To resume your recording or live broadcast, please click on the “Resume” button. Of course, the pause sequence will be automatically cut off when the video is rendered.

The next button "Start recording", as its name suggests, will allow you to start recording. When the recording is active, the  button will now show you the elapsed recording time. If you wish, you can then add a chapter marker that will be included in the Nudgis player by clicking on the "Add a chapter" button.

The following button, "Start Live", will allow you to start and stop a live broadcast.

Then, if you wish, you can use the 🔊 button to set the monitoring audio and capture output volume. Please note that the capture volume will only work with your physical audio devices. The volume control, for monitoring audio (does not interfere with the recording volume, it is for preview only and can be muted if required), and capture (affects recording). Note that clicking on the icon mutes the recording (confirmation is requested if it is the capture volume).

Finally, the last button is used to switch the preview to full screen. To exit full screen mode, please press the "Esc" button on your keyboard or the « Exit full screen mode » button on your browser and at last this icon .

That completes our tour of the recording interface. Once you have finished recording, you will find it in the Publish section.

Furthermore, you can also schedule recordings. If you're interested in this, please see our dedicated article "Scheduled recordings in Miris Manager".



Congratulations on completing your first recording! Now you can share it with your colleagues after you have published it!

To continue: "Publishing content" with Miris Capture !
